359 lm/ft.

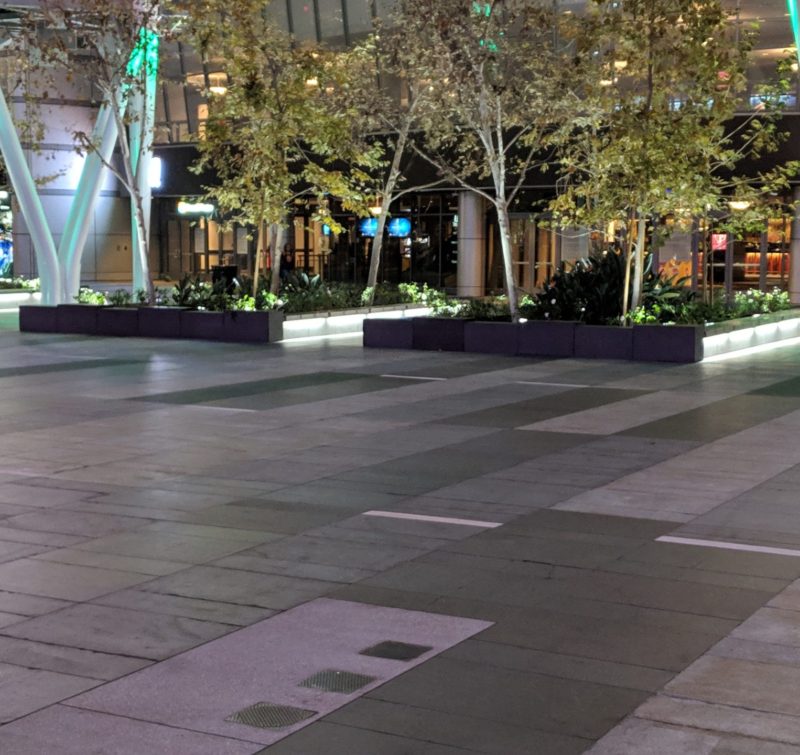

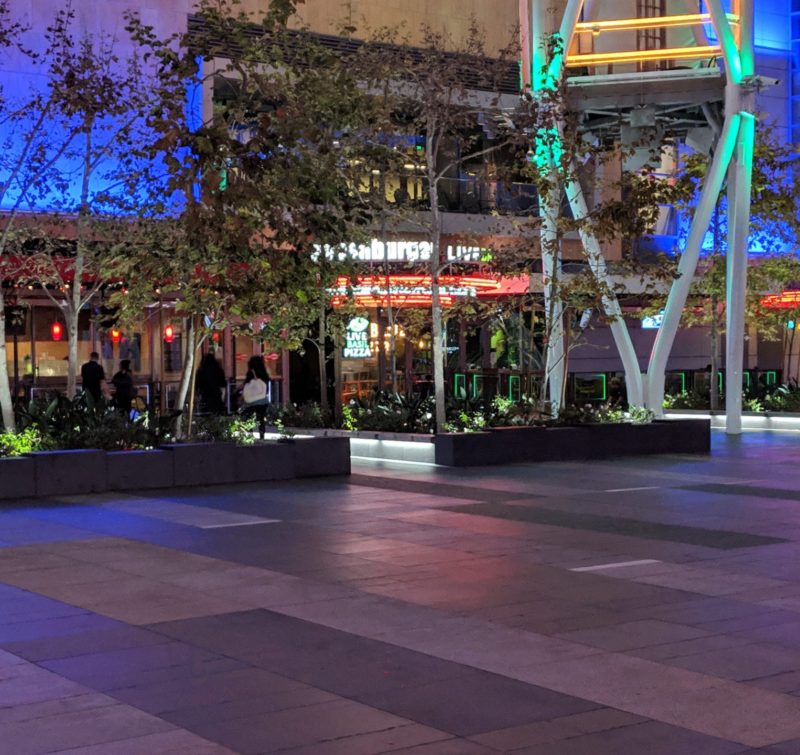

  • Meet our most popular high-performance linear architectural outdoor lighting LED fixtures! The HB30 Series fixtures are compact at 1-1/4” wide designed to provide grazing, wall-washing with even illumination of up to 12ft for exterior applications.
    Compatible Mounting Accessories optional and sold separately.

    Download
    Data Sheets IES Louvers Catalog

    HB308

    , ,
    4.25 w/ft. 359 lm/ft.
    120/277VAC
    12", 24", 36", 48"
    15°, 30°, 45°, 120°, 30°x60°
    28k, 30k, 35k, 40k, 50k, 65k, Red, Green, Blue
    Non Dimming
    IP66 – Wet location
    90,000 hours
    5-YEAR LIMITED WARRANTY

  • The HB30i Series is a high-quality spec-grade indoor architectural lighting fixture offering high-performance in a small, low-profile package – max 1.76"h x 1.26"w.. Architects and lighting designers love this Series for its versatility! This technological innovation offers graze and wash options for direct or indirect illumination. Fixtures are available in a variety of static colors as well as RGB and RGBW. You can also choose between flat and dome lenses with clear and opaque options.

    Download
    Data Sheets IES Connection Instructions Catalog

    HB308i

    , ,
    4.4 w/ft. 359 lm/ft.
    120/277VAC
    12", 24", 36", 48"
    15°, 30°, 45°, 120°, 30°x60°
    28k, 30k, 35k, 41k, 50k, 65k, Red, Green, Blue
    Non Dimming
    IP40 rated - Dry location
    90,000 hours
    5-YEAR LIMITED WARRANTY
