Outdoor Architectural Lighting

All HB18 Series HB30 Series HB30PD Series HB40HP Series HB40SP Series HB50 Series

Outdoor Lighting

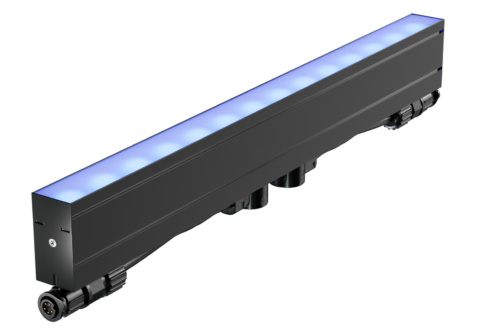

  • Our most narrow outdoor specification grade fixture great for edge and accent lighting in areas with limited space. The HB18 produces 400lm/ft. and is only 0.79” wide with single run lengths up to 277ft.”

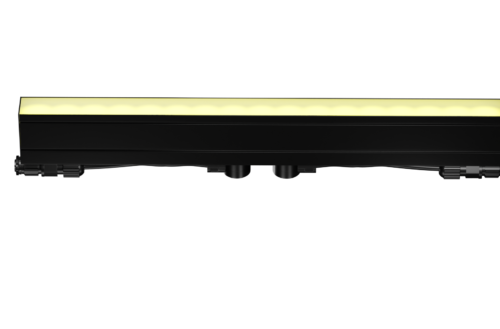

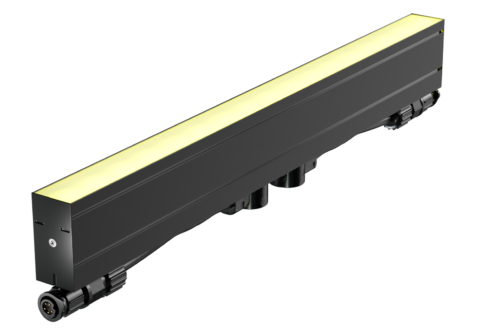

    HB1814

    Narrow wall washer with precision optics.
    Download
    Data Sheets IES Catalog
    Applications,
    Performance4w/ft. 400lm./ft.
    VoltageUniversal 120/277 vac
    Lengths12", 24", 36", 48"
    Optics30°, 45°, 30°x60°
    Color TempsStatic white
    EnvironmentIP66 – Wet location
    Lifetime90,000 hours
    Warranty5-YEAR LIMITED WARRANTY

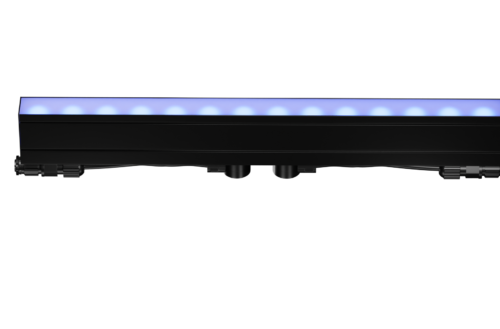

  • HB1828

    Compact fixture for edge lighting.
    Download
    Data Sheets IES Catalog
    Applications,
    Performance4w/ft. 180lm/ft.
    VoltageUniversal 120/277 vac
    Lengths12", 24", 36", 48"
    Optics30°, 45°, 30°x60°
    Color TempsStatic white
    EnvironmentIP66 – Wet location
    Lifetime90,000 hours
    Warranty5-YEAR LIMITED WARRANTY

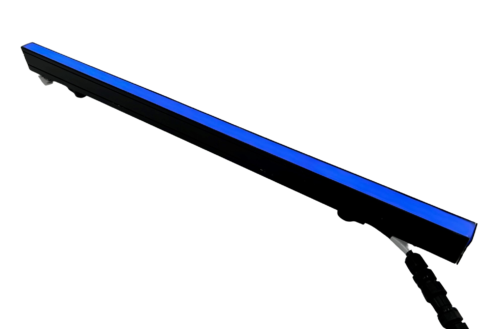

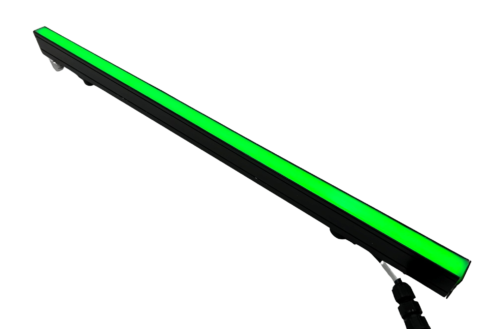

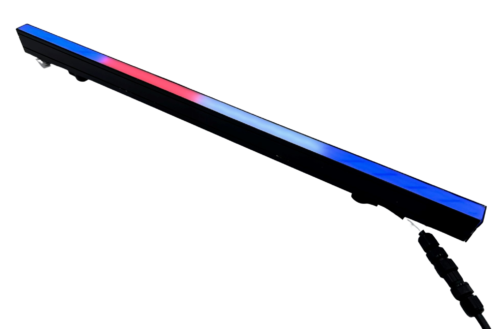

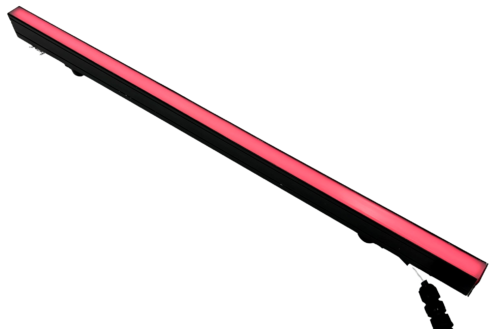

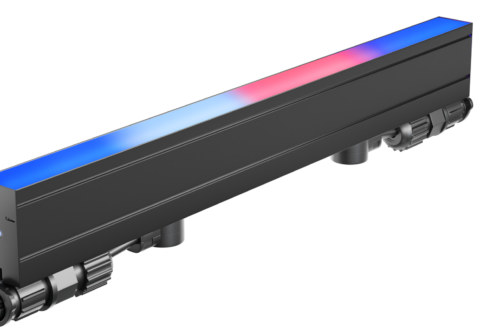

  • HB1856-RGBW

    Border and edge lighting with vivid colors - DMX controlled.
    Download
    Data Sheets IES Catalog
    Applications,
    Performance4w/ft.
    VoltageUniversal 120/277 vac
    Lengths12", 24", 36", 48"
    Optics120°
    Color TempsRGBW - 56 LED's/ft.
    EnvironmentIP66 – Wet location
    Lifetime90,000 hours
    Warranty5-YEAR LIMITED WARRANTY

  • Meet our most popular high-performance linear architectural outdoor lighting LED fixtures! The HB30 Series fixtures are compact at 1-1/4” wide designed to provide grazing, wall-washing with even illumination of up to 12ft for exterior applications.
    Compatible Mounting Accessories optional and sold separately.

    HB308

    Exterior Budget Friendly Cove, Graze, Wall wash
    Download
    Data Sheets IES Catalog
    Applications, ,
    Performance4.25 w/ft. 359 lm/ft.
    Lengths12", 24", 36", 48"
    Optics15°, 30°, 45°, 120°, 30°x60°
    Color Temps28k, 30k, 35k, 40k, 50k, 65k, Red, Green, Blue
    ControlNon Dimming
    EnvironmentIP66 – Wet location
    Lifetime90,000 hours
    Warranty5-YEAR LIMITED WARRANTY

  • HB3014-ACD

    Exterior Cove, Graze, Wall wash
    Download
    Data Sheets IES Instructions Catalog
    Applications, ,
    Performance 458 lm/ft., 570 lm/ft.
    Voltage100/277VAC
    Lengths12", 24", 36", 48"
    Optics15°, 30°, 45°, 120°, 30°x60°
    Color Temps28k, 30k, 35k, 41k, 50k, 60k, Red, Green, Blue
    Control0-10v Dimming
    EnvironmentIP66 – Wet location
    Lifetime90,000 hours
    Warranty5-YEAR LIMITED WARRANTY

  • HB3014-DC

    Exterior Cove, Graze, Wall wash for Low voltage applications
    Download
    Data Sheets IES
    Applications, , ,
    Performance6.5 w/ft. 480 lm/ft.
    Voltage24VDC
    Lengths12", 24", 36", 48"
    Optics15°, 30°, 45°, 120°, 30°x60°
    Color Temps28k, 30k, 35k, 41k, 50k, 65k, Red, Green, Blue
    Control0-10v Dimming
    EnvironmentIP66 – Wet location
    Warranty5-YEAR LIMITED WARRANTY

  • HB3014R

    Exterior Direct View dome lens
    Download
    Data Sheets IES Instructions Catalog
    Applications,
    Performance4.5 w/ft. 7.5 w/ft. 365lm/ft., 458 lm/ft.
    Voltage120/277VAC
    Lengths12", 24", 36", 48"
    Optics120°
    Color Temps28k, 30k, 35k, 40k, 50k, 65k, Red, Green, Blue
    Control0-10v Dimming
    EnvironmentIP66 – Wet location
    Warranty5-YEAR LIMITED WARRANTY

  • HB3015 RGB

    Exterior Cove, Graze, Wall wash RGB
    Download
    Data Sheets IES Instructions Catalog
    Applications, , ,
    Lengths12", 24", 36", 48"
    Optics15°, 30°, 45°, 120°, 30°x60°
    Color TempsRGB (3 channel)
    ControlDMX - Addressable every 12”
    EnvironmentIP66 – Wet location
    Warranty5-YEAR LIMITED WARRANTY

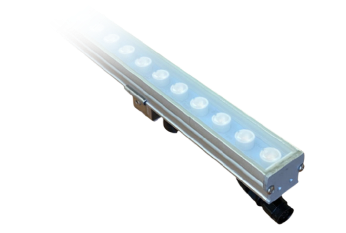

  • HB3016 RGBW

    Exterior Cove, Graze, Wall wash RGBW with even illumination
    Download
    Data Sheets IES Instructions Catalog
    Applications, , ,
    Performance5.6 w/ft. 216lm/ft
    Lengths12", 24", 36", 48"
    Optics15°, 45°, 120°, 30°x60°
    Fixture Dimensions15°, 20°, 30°, 45°, 120°, 30°x60°
    Color TempsRGBW
    ControlDMX - Addressable every 12”
    EnvironmentIP66 – Wet location
    Warranty5-YEAR LIMITED WARRANTY

  • The HB30PD Series is a direct-view architectural linear designed for exterior edge or accent lighting. This fixture is made with a continuous 1-piece polycarbonate housing. The domed lens provides a vivid, even illumination without pixelation and is available in White, RGB & RGBW.

    HB3024PD

    Exterior Direct view without pixelation
    Download
    Data Sheets IES Catalog
    Applications,
    Performance4.25 w/ft. 346lm/ft.
    Voltage120/277VAC
    Lengths12", 24", 36", 48"
    Optics120°
    Color Temps28k, 30k, 35k, 40k, 50k, 65k, Red, Green, Blue
    Control0-10v Dimming
    EnvironmentIP66 – Wet location
    Warranty5-YEAR LIMITED WARRANTY

  • HB3018PD RGB

    Exterior Direct View for even illumination without pixelation
    Download
    Data Sheets IES Instructions Catalog
    Applications,
    Voltage120/277VAC
    Lengths12", 24", 36", 48"
    Optics120°
    Color Temps18 LED’s/ft. RGB(3 channel), RGB
    ControlDMX - Addressable every 4”
    EnvironmentIP66 – Wet location
    Warranty5-YEAR LIMITED WARRANTY

  • HB3036PD RGBW

    Exterior Direct View for even illumination without pixelation
    Download
    Data Sheets IES Instructions Catalog
    Applications,
    Performance 239lm/ft.
    Voltage120/277VAC
    Lengths12", 24", 36", 48"
    Optics120°
    Color Temps18 RGB + 18 White
    ControlDMX - Addressable every 12”
    EnvironmentIP66 – Wet location
    Warranty5-YEAR LIMITED WARRANTY

  • HB3018 RGB

    View Cart
    Details
    Download
    Data Sheets Instructions
    Applications,
    Voltage120/277VAC
    Lengths12", 24", 36", 48"
    Optics120°
    Fixture Dimensions120°
    Color TempsRGB (3 channel)
    ControlDMX - Addressable every 12”
    EnvironmentIP66 – Wet location
    Warranty5-YEAR LIMITED WARRANTY

  • The HB40HP series is a powerful architectural linear fixture ideal for applications up to 35ft. Select from multiple optics for grazing, wall-washing and general illumination.
    Compatible Mounting Accessories optional and sold separately.

    HB40HP

    Exterior High-Performance with optics for Graze, Wall wash, Cove & Accent
    Download
    Data Sheets IES Instructions Catalog
    Applications, , ,
    Lengths10", 19", 28", 37", 46"
    Optics15°, 20°, 30°, 45°, 120°, 13°x17°, 30°x60°
    Color Temps28k, 30k, 35k, 40k, 50k, 65k, Red, Green, Blue
    EnvironmentIP66 – Wet location
    Warranty5-YEAR LIMITED WARRANTY

  • HB40HP RGB

    Exterior High-Performance with optics for Graze, Wall wash, Cove & Accent
    Download
    Data Sheets IES Catalog
    Applications, , ,
    Voltage120/277VAC
    Lengths10", 19", 28", 37", 46"
    Optics15°, 20°, 30°, 45°, 120°, 30°x60°
    Color TempsRGB (3 channel) – 12 LEDs/ft. (4R, 4G, 4B)
    ControlDMX - Addressable every 9"
    EnvironmentIP66 – Wet location
    Warranty5-YEAR LIMITED WARRANTY

  • HB40HP RGBW

    Exterior High-Performance with optics for Graze, Wall wash, Cove & Accent
    Download
    Data Sheets IES Catalog
    Applications, , ,
    Performance13 w/ft. 641lm/ft.
    Voltage120/277VAC
    Lengths10", 19", 28", 37", 46"
    Optics15°, 20°, 30°, 45°, 120°, 30°x60°
    Color TempsRGBW - 16 LEDs/ft. (4R, 4G, 4B, 4W)
    ControlDMX - Addressable every 9"
    EnvironmentIP66 – Wet location
    Warranty5-YEAR LIMITED WARRANTY

  • The HB40SP illuminates up to 45ft. The LED board can be angled up to 20 degrees toward the surface you are illuminating. Extruded aluminum covers conceal the wiring for a clean, finished look. The anodized aluminum housing with tooled end caps ensures this fixture can withstand the harshest environments.
    Compatible Mounting Accessories optional and sold separately.

    HB40SP

    Exterior High-Performance Graze, Wall wash, Cove with Adjustable optical board.
    Download
    Data Sheets IES Catalog
    Applications, , ,
    Lengths10", 19", 28", 37", 46"
    Optics15°, 20°, 30°, 45°, 120°, 13°x17°, 30°x60°
    Color Temps28k, 30k, 35k, 41k, 50k, 65k, Red, Green, Blue
    Control0-10v Dimming
    EnvironmentIP66 – Wet location
    Warranty5-YEAR LIMITED WARRANTY

  • HB40SP RGB

    Exterior High-Performance Graze, Wall wash, Cove with Adjustable optical board.
    Download
    Data Sheets IES Catalog
    Applications, , ,
    Performance13 w/ft.
    Voltage120/277VAC
    Lengths10", 19", 28", 37", 46"
    Optics15°, 20°, 30°, 45°, 120°, 30°x60°
    Color TempsRGB – 12 LEDs/ft
    ControlDMX - Addressable every 9"
    EnvironmentIP66 – Wet location
    Warranty5-YEAR LIMITED WARRANTY

  • HB40SP RGBW

    Exterior High-Performance Graze, Wall wash, Cove with Adjustable optical board.
    Download
    Data Sheets IES Catalog
    Applications, , ,
    Performance13 w/ft. 634lm/ft.
    Voltage120/277VAC
    Lengths10", 19", 28", 37", 46"
    Optics15°, 20°, 30°, 45°, 120°, 30°x60°
    Color TempsRGBW – 16 LEDs/ft
    ControlDMX - Addressable every 9"
    EnvironmentIP66 – Wet location
    Warranty5-YEAR LIMITED WARRANTY

  • The HB50 Series are powerful exterior linear fixtures capable of illuminating over 8 stories! Luminaires can be specified with various optics for grazing and wall washing and are available in static colors, RGB or RGBW.
    Compatible Mounting Accessories optional and sold separately.

    HB50B

    Exterior Powerful, High-Intensity Graze, Wall wash, Cove
    Download
    Data Sheets IES Catalog
    Applications, , ,
    Performance12 w/ft. 16 w/ft. 20 w/ft. 1040 lm/ft., 1400 lm/ft., 780 lm/ft.
    Voltage100/277VAC
    Lengths12", 24", 36", 48"
    Optics10°x60°, 15°x35°, 8°, 15°, 20°, 30°, 45°, 120°, 8°x40°, 13°x17°, 30°x60°
    Color Temps28k, 30k, 35k, 41k, 50k, 65k, Red, Green, Blue
    Control0-10v Dimming
    EnvironmentIP66 – Wet location
    Lifetime90,000 hours
    Warranty5-YEAR LIMITED WARRANTY

  • HB50A RGB

    Exterior Powerful, High-Intensity Graze, Wall wash, Cove
    Download
    Data Sheets IES Catalog
    Applications, , ,
    VoltageUniversal 120/277 vac
    Lengths12", 24", 36", 48"
    Optics10°x60°, 15°x35°, 15°, 20°, 30°, 45°, 120°, 30°x60°
    Color TempsRGB – 18LEDs/ft
    ControlDMX - Addressable every 12”
    EnvironmentIP66 – Wet location
    Lifetime90,000 hours
    Warranty5-YEAR LIMITED WARRANTY

  • HB50C RGBW

    Exterior Powerful, High-Intensity Graze, Wall wash, Cove
    Download
    Data Sheets IES Catalog
    Applications, , ,
    Performance 943lm/ft.
    VoltageUniversal 120/277 vac
    Lengths12", 24", 36", 48"
    Optics10°x60°, 15°x35°, 15°, 20°, 30°, 45°, 120°, 30°x60°
    Color TempsRGBW / RGBA
    ControlDMX - Addressable every 12”
    EnvironmentIP66 – Wet location
    Lifetime90,000 hours
    Warranty5-YEAR LIMITED WARRANTY

  • HB5228

    Exterior Powerful, High-Intensity Flood
    View Cart
    Details
    Download
    Data Sheets IES
    Applications,
    Performance1450lm/ft
    Lengths12", 24", 36", 48"
    Optics120°
    Color TempsStatic white
    EnvironmentIP66 Wet
    Lifetime90,000 hours

  • HB5242

    Exterior Powerful, High-Intensity Flood
    View Cart
    Details
    Download
    Data Sheets IES
    Applications,
    Performance2050lm/ft
    Voltage100/277VAC
    Lengths12", 24", 36", 48"
    EnvironmentIP66 Wet
    Lifetime90,000 hours

  • HB5224 RGB

    Exterior Powerful, High-Intensity Flood
    View Cart
    Details
    Download
    Data Sheets
    Applications,
    Lengths12", 24", 36", 48"
    Color TempsRGB
    Warranty5-YEAR LIMITED WARRANTY
