HB40HP Series

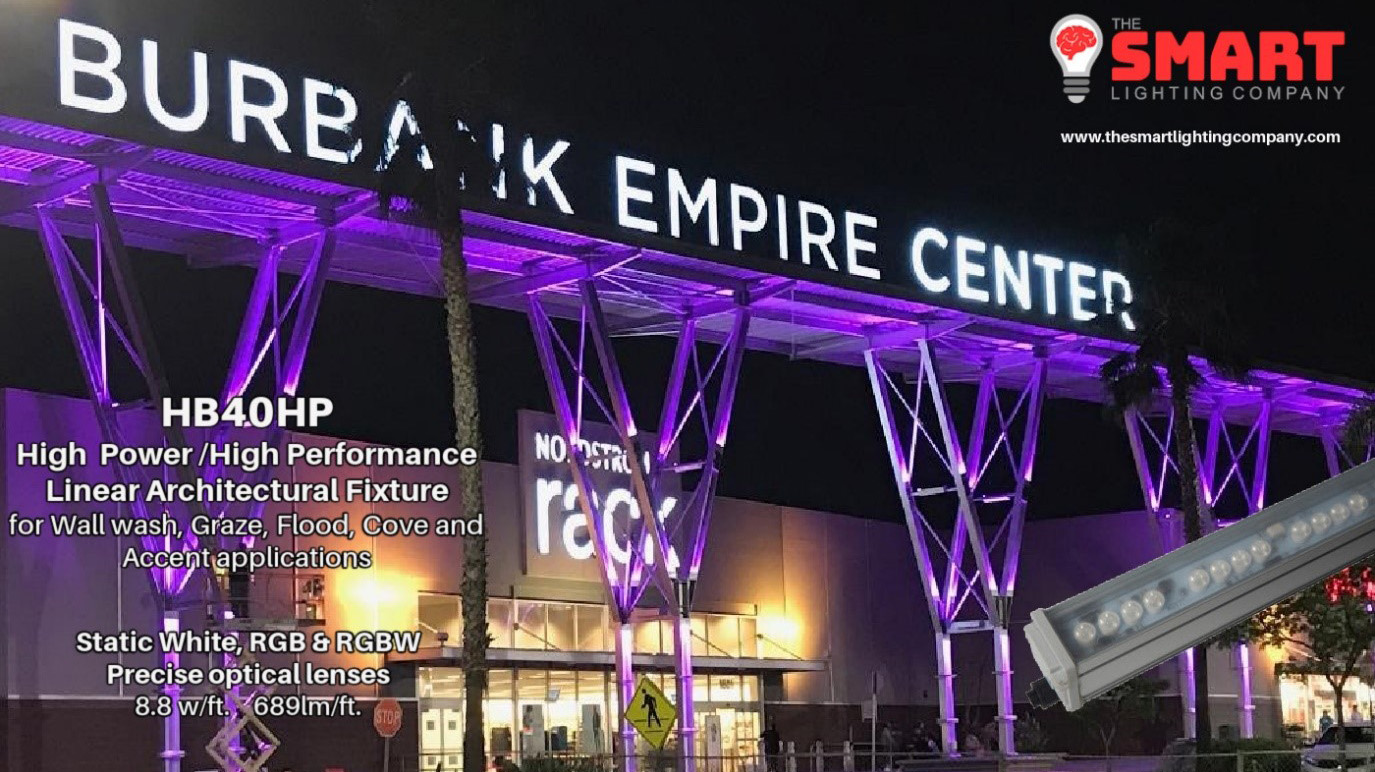

The HB40 is ideal for powerful illumination between 15~35FT depending on optics. While we offer many optics options, the HB40SP allows for additional fine-tuning in the field through the adjustable optics board (+/-20°). The extruded anodized aluminum housing with tooled end caps makes it ready for the harshest environments.

  • The HB40HP series is a powerful architectural linear fixture ideal for applications up to 35ft. Select from multiple optics for grazing, wall-washing and general illumination.
    Compatible Mounting Accessories optional and sold separately.

    HB40HP

    Exterior High-Performance with optics for Graze, Wall wash, Cove & Accent
    Download
    Data Sheets IES Instructions Catalog
    Applications, , ,
    Lengths10", 19", 28", 37", 46"
    Optics15°, 20°, 30°, 45°, 120°, 13°x17°, 30°x60°
    Color Temps28k, 30k, 35k, 40k, 50k, 65k, Red, Green, Blue
    EnvironmentIP66 – Wet location
    Warranty5-YEAR LIMITED WARRANTY

  • HB40HP RGB

    Exterior High-Performance with optics for Graze, Wall wash, Cove & Accent
    Download
    Data Sheets IES Catalog
    Applications, , ,
    Voltage120/277VAC
    Lengths10", 19", 28", 37", 46"
    Optics15°, 20°, 30°, 45°, 120°, 30°x60°
    Color TempsRGB (3 channel) – 12 LEDs/ft. (4R, 4G, 4B)
    ControlDMX - Addressable every 9"
    EnvironmentIP66 – Wet location
    Warranty5-YEAR LIMITED WARRANTY

  • HB40HP RGBW

    Exterior High-Performance with optics for Graze, Wall wash, Cove & Accent
    Download
    Data Sheets IES Catalog
    Applications, , ,
    Performance13 w/ft. 641lm/ft.
    Voltage120/277VAC
    Lengths10", 19", 28", 37", 46"
    Optics15°, 20°, 30°, 45°, 120°, 30°x60°
    Color TempsRGBW - 16 LEDs/ft. (4R, 4G, 4B, 4W)
    ControlDMX - Addressable every 9"
    EnvironmentIP66 – Wet location
    Warranty5-YEAR LIMITED WARRANTY

  • HB40HP 24VDC

    View Cart
    Details
    Download
    Data Sheets
    Applications, , ,
    Performance8.8 w/ft. 689 lm/ft.
    Voltage24VDC
    Lengths10", 19", 28", 37", 46"
    Optics15°, 20°, 30°, 45°, 120°, 13°x17°, 30°x60°
    Color Temps28k, 30k, 35k, 40k, 50k, 65k, Red, Green, Blue
    Control0-10v Dimming
    EnvironmentIP66 – Wet location
    Warranty5-YEAR LIMITED WARRANTY
