Mounting Accessories

  • HB30 / HB40HP / HB50 Series

    Graze, Wall Wash, or General Illumination

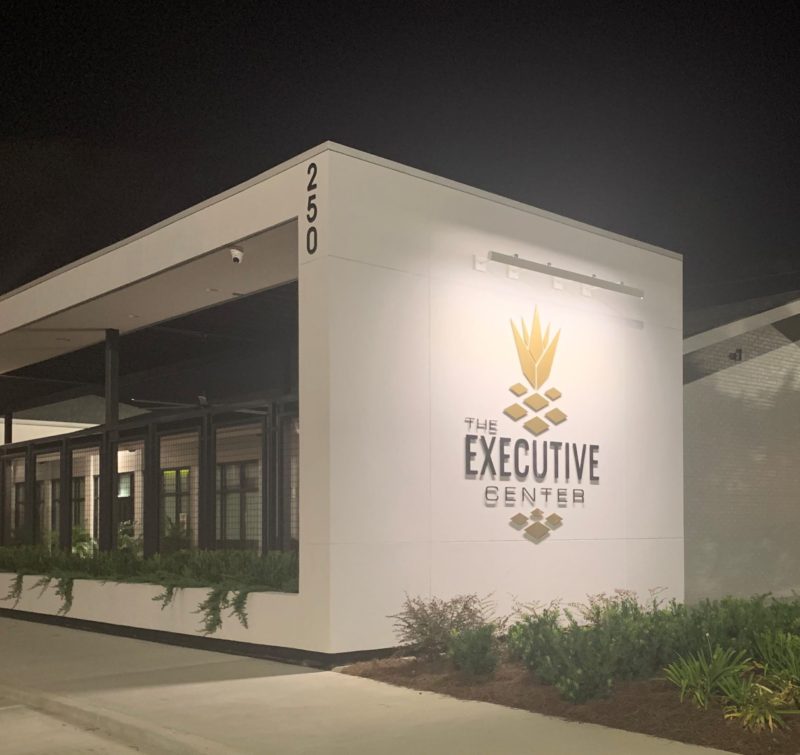

    Stylishly illuminate signage, façades, monuments, and more with our outdoor extrusion package. The powder-coated housings are available in a variety of standard finishes and are mountable via ground post stake or wall mount with your choice of extended arm lengths. An integrated glare shield is standard and optional louvers are available. Extrusions can be stand alone or row mounted.
    HB30, HB40HP, and HB50 Series fixtures sold separately.

    HB30 Mounting

    HousingExtruded Anodized Aluminum
    Fixture Lengths12”, 24”, 36”, 48”
    Housing ColorsBronze, Black, White, Silver, custom
    ConnectionQuick connect plug and play
    MountingExtended arms or ground post
    EnvironmentIP66 Wet, Damp or Dry Locations
    Glare ProtectionIntegrated glare shield - optional louvers
  • HB40HP Mounting

    HousingExtruded Anodized Aluminum
    Fixture Lengths10, 19, 28, 37, 46
    Housing ColorsBronze, Black, White, Silver, custom
    ConnectionQuick connect plug and play
    MountingExtended arms or ground post
    EnvironmentIP66 Wet, Damp or Dry Locations
    Glare ProtectionIntegrated glare shield - optional louvers

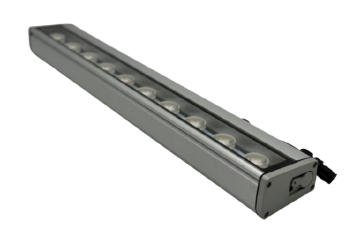

  • HB40SP Series

    Graze, Wall Wash, Cove & Accent, and General Illumination

    The HB40SP has an integrated adjustable optical board and is mounted using our Ceiling, Surface, or Wall Mount Brackets or optional extended arms. Wires and mounting hardware can be concealed with the ultra-sleek covers. This creates a beautiful aesthetic without compromising on installation method.
    HB40SP fixture sold separately.

    HB40SP Mounting

    Download
    Data Sheets
    HousingExtruded Anodized Aluminum
    Housing ColorsBronze, Black, White, Silver, custom
    ConnectionQuick connect plug and play
    MountingExtended arms or ground post
    EnvironmentIP66 Wet, Damp or Dry Locations
    Glare ProtectionIntegrated glare shield - optional louvers
  • HB50 Mounting

    HousingExtruded Anodized Aluminum
    Fixture Lengths12”, 24”, 36”, 48”
    Housing ColorsBronze, Black, White, Silver, custom
    ConnectionQuick connect plug and play
    MountingExtended arms or ground post
    EnvironmentIP66 Wet, Damp or Dry Locations
    Glare ProtectionIntegrated glare shield - optional louvers
