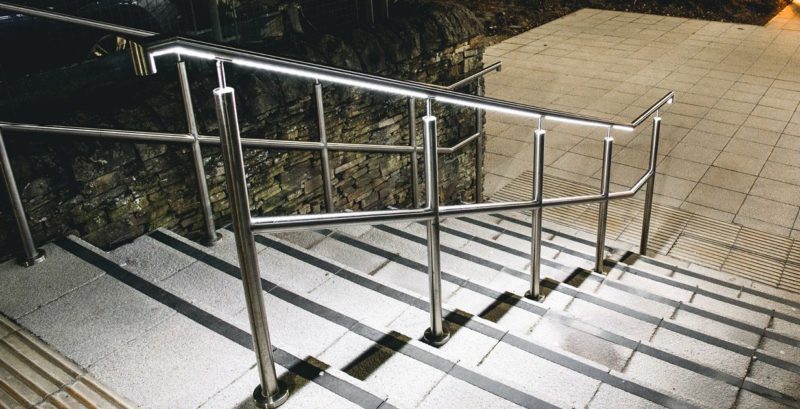

Illuminated Square Handrail

Timeless, minimalist design with straightforward shapes in rich satin stainless steel that will never go out of style designed for high traffic commercial areas as well as high end residences.

Smart Lights Illuminated Rail – Imagine using a beautiful ambient light to make a special functional feature of your railing. Smart Lights offers LED lighting solutions to give you a continuous, linear flow of light that contributes to both safety and ambience. Numerous effects are possible, including warm white light and cool white light. The illuminated rail allows for dimming to create just the right mood for your space. Installation is easy.

  • Modular system – Unlimited design possibilities
  • Illuminated or Non-Illuminated rail
  • Timeless look
  • Top quality stainless steel – 304 and 316
  • Extremely wide range of pre-fabricated modular components
  • No welding required, installation achieved with gluing, drilling and tapping
  • Superior LED strips for continuous lighting
  • Remote mounted drivers for easy access
  • High-grade plastic lenses (transparent or frosted) cover the LEDs
  • No visible wires
  • Infill options – Cables, Bars or Glass
  • Suitable for new construction or retrofit applications
Features
  • 24VDC
  • 1.4w, 170lm/ft; 2.4w, 310lm/ft; 4.6w, 550lm/ft.
  • 27k, 30k, 35k, 40k, 50k
  • Dimmable
  • IP67 Wet location
  •
