Indoor Architectural Lighting

All HB30i Series JB36 & SB18 SB8 & SB12

Indoor Lighting

  • The HB30i Series is a high-quality spec-grade indoor architectural lighting fixture offering high-performance in a small, low-profile package – max 1.76"h x 1.26"w.. Architects and lighting designers love this Series for its versatility! This technological innovation offers graze and wash options for direct or indirect illumination. Fixtures are available in a variety of static colors as well as RGB and RGBW. You can also choose between flat and dome lenses with clear and opaque options.

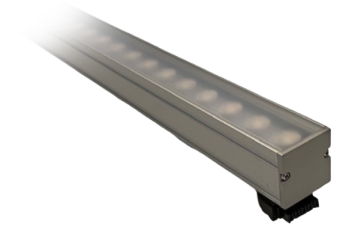

    HB308i

    Budget friendly Interior Cove, Graze, Wall wash
    Download
    Data Sheets IES Connection Instructions Catalog
    Applications, ,
    Performance4.4 w/ft. 359 lm/ft.
    Voltage120/277VAC
    Lengths12", 24", 36", 48"
    Optics15°, 30°, 45°, 120°, 30°x60°
    Color Temps28k, 30k, 35k, 41k, 50k, 65k, Red, Green, Blue
    ControlNon Dimming
    EnvironmentIP40 rated - Dry location
    Lifetime90,000 hours
    Warranty5-YEAR LIMITED WARRANTY

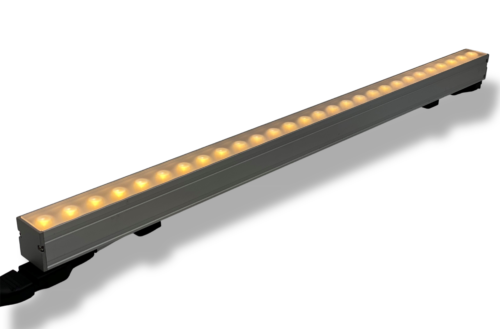

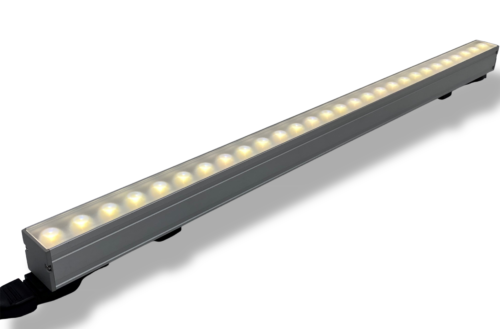

  • HB3014i

    Interior Cove, Graze, Wall wash
    Download
    Data Sheets IES Connection Catalog
    Applications, ,
    Performance4.5 w/ft. 7.5 w/ft. 458 lm/ft., 557 lm/ft.
    Voltage120/277VAC
    Lengths12", 24", 36", 48"
    Optics15°, 30°, 45°, 120°, 30°x60°
    Color Temps28k, 30k, 35k, 41k, 50k, 65k, Red, Green, Blue
    Control0-10v Dimming
    EnvironmentIP40 rated - Dry location
    Warranty5-YEAR LIMITED WARRANTY

  • HB3014ir

    Interior Direct View dome lens
    Download
    Data Sheets IES Connection Catalog
    Applications
    Performance4.5 w/ft. 7.5 w/ft. 356 lm/ft., 458 lm/ft.
    Voltage120/277VAC
    Lengths12", 24", 36", 48"
    Optics120°
    Color Temps28k, 30k, 35k, 41k, 50k, 65k, Red, Green, Blue
    Control0-10v Dimming
    EnvironmentIP40 rated - Dry location
    Warranty5-YEAR LIMITED WARRANTY

  • HB3024if

    Interior Direct View with flat opaque lens
    Download
    Data Sheets IES Connection Catalog
    Applications, ,
    Performance4.4 w/ft. 458 lm/ft.
    Voltage120/277VAC
    Lengths12", 24", 36", 48"
    Optics120°
    Color Temps28k, 30k, 35k, 41k, 50k, 65k
    Control0-10v Dimming
    EnvironmentIP40 rated - Dry location
    Warranty5-YEAR LIMITED WARRANTY

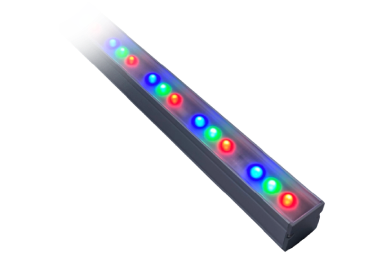

  • HB3015i RGB

    Interior Cove, Graze, or Wall wash
    Download
    Data Sheets IES Connection Catalog
    Applications, , ,
    Performance6 w/ft.
    Voltage120/277VAC
    Lengths12", 24", 36", 48"
    Optics15°, 30°, 45°, 120°, 30°x60°
    Color TempsRGB (3 channel)
    ControlDMX - Addressable every 12”
    EnvironmentIP40 rated - Dry location
    Warranty5-YEAR LIMITED WARRANTY

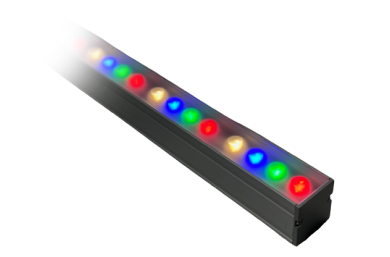

  • HB3016i RGBW

    Interior Cove, Graze or Wall wash
    Download
    Data Sheets IES Connection Catalog
    Applications, , ,
    Voltage120/277VAC
    Lengths12", 24", 36", 48"
    Optics15°, 30°, 45°, 120°, 30°x60°
    Color Temps28k, 30k, 35k, 41k, 50k, 65k
    ControlDMX - Addressable every 12”
    EnvironmentIP40 rated - Dry location
    Warranty5-YEAR LIMITED WARRANTY

  • HB3018ir RGB

    Interior Direct View RGB
    Download
    Data Sheets Connection Catalog
    Applications,
    Voltage120/277VAC
    Lengths12", 24", 36", 48"
    Optics120°
    Fixture Dimensions15°, 20°, 30°, 45°, 120°, 30°x60°
    Color TempsRGB (3 channel)
    ControlDMX - Addressable every 6"
    EnvironmentIP40 rated - Dry location
    Warranty5-YEAR LIMITED WARRANTY

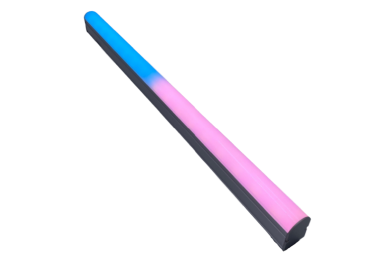

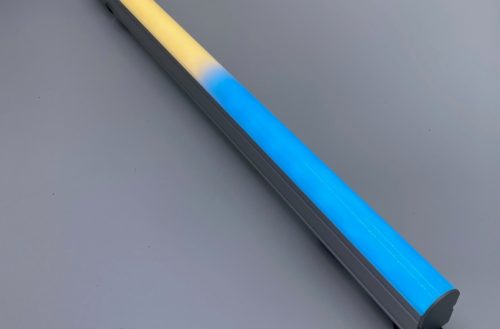

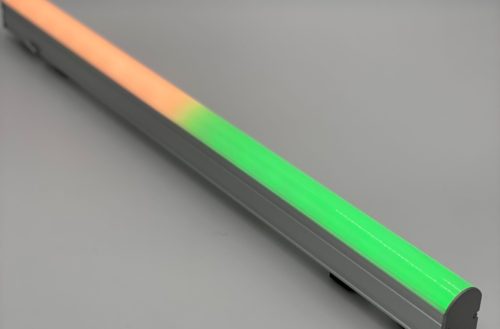

  • HB3036ir RGBW

    Interior Direct View RGBW
    Download
    Data Sheets Connection Catalog
    Applications,
    Performance5.6 w/ft.
    Voltage120/277VAC
    Lengths12", 24", 36", 48"
    Optics120°
    Color TempsRGBW
    ControlDMX - Addressable every 12”
    EnvironmentIP40 rated - Dry location
    Warranty5-YEAR LIMITED WARRANTY

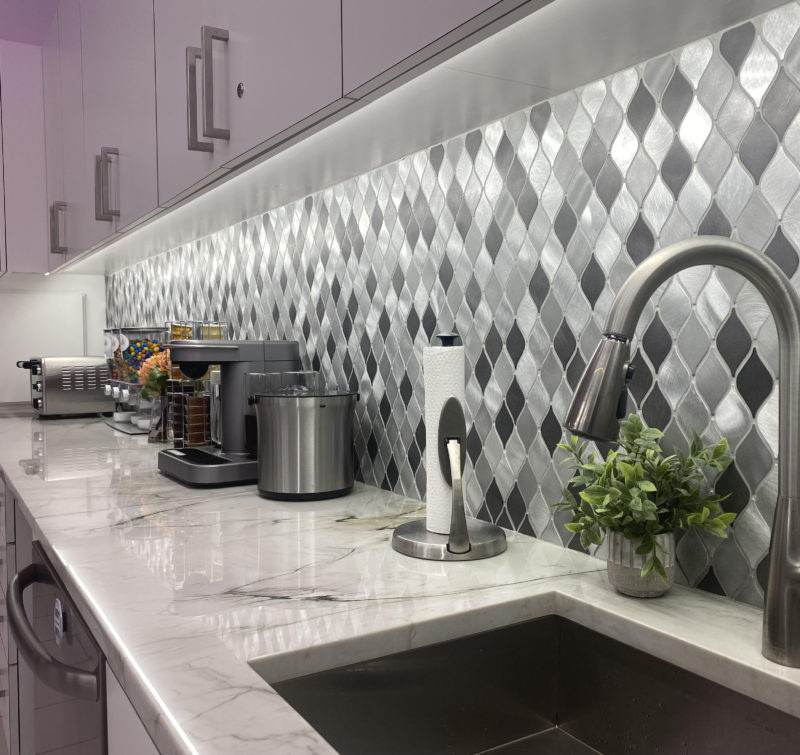

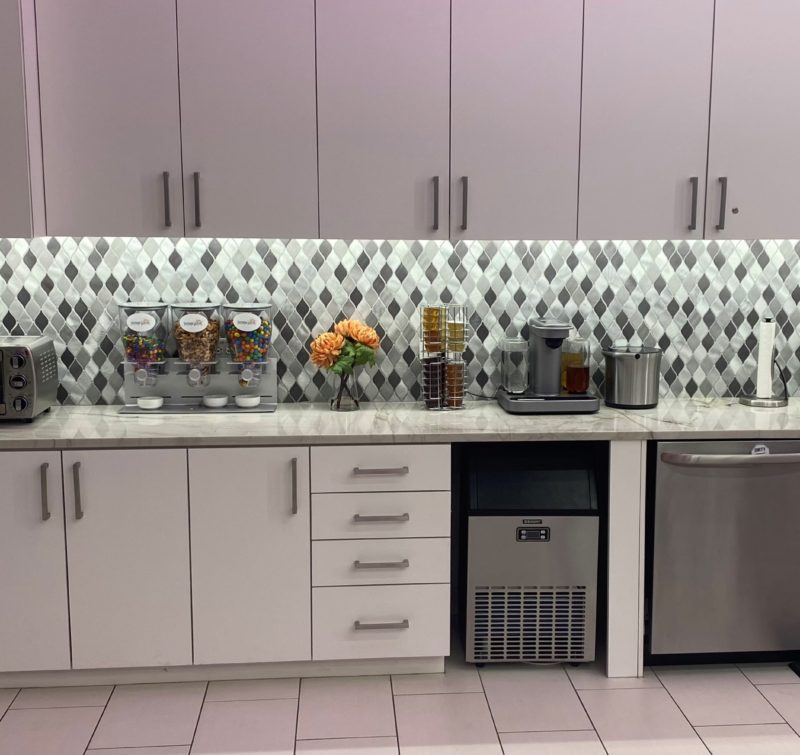

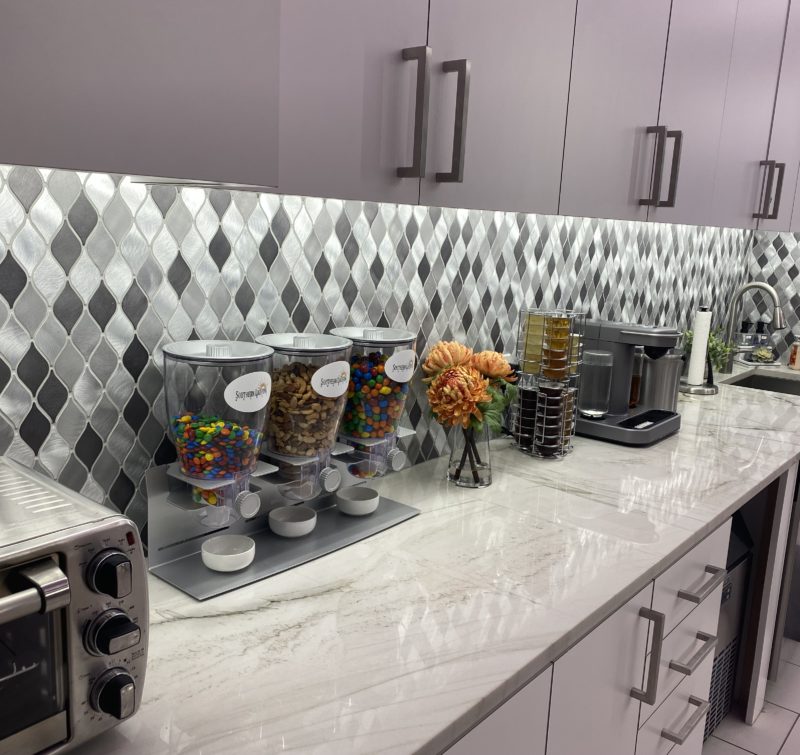

  • The JB36 is a 24v linear indoor lighting fixture with a 5/8" x 5/8" diffused, quarter round angled lens, perfect for high performance cove, shelf and under cabinet illumination. This unique fixture is magnetically connected and powered, quick to install, producing an intense, fluid glow without pixelation.

    JB36

    Interior Direct View magnetically connected for under cabinet, shelf and cove.
    Download
    Data Sheets IES Instructions Catalog
    Applications,
    Performance6 w/ft. 420 lm/ft.
    Voltage24VDC
    Lengths5", 7", 12", 24", 36", 48"
    Optics120°
    Color Temps28k, 30k, 35k, 40k, 50k, 65k
    Control0-10v Dimming
    EnvironmentIP20 Dry Location
    Warranty5-YEAR LIMITED WARRANTY

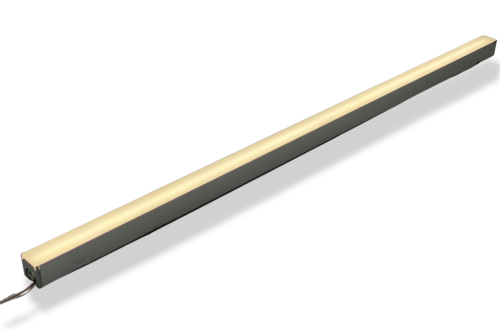

  • The SB18 is a compact 24v fixture at ¾” x ¾” with an even, non-pixelated fluid glow. The diffused lens and installation ease allow for seamless, high intensity illumination.

    SB18

    Interior Direct View Linear
    Download
    Data Sheets IES Instructions Catalog
    Applications,
    Performance6 w/ft. 420 lm/ft.
    Voltage24VDC
    Lengths5", 7", 12", 24", 36", 48"
    Optics120°
    Color Temps28k, 30k, 35k, 40k, 50k, 65k
    Control0-10v Dimming
    EnvironmentIP20 Dry Location
    Warranty5-YEAR LIMITED WARRANTY

  • Architectural linear system for indoor, indirect lighting applications for grazing or wall washing of walls, windows, narrow coves, and niches. Low-profile for applications such as retail, hotel, restaurant, museums and residential homes.

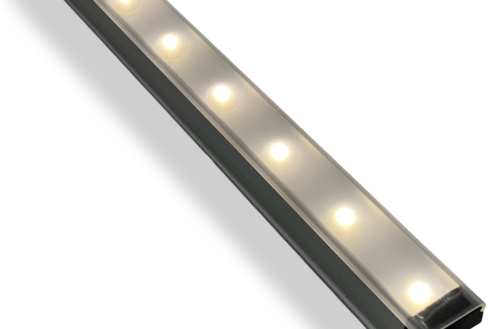

    SB8

    Budget friendly cove and accent.
    Download
    Data Sheets IES Instructions Catalog
    Applications, , ,
    Performance4.35 w/ft. 380 lm/ft.
    Voltage24VDC
    Lengths12", 24", 36", 48", 60", 66"
    Optics15°, 20°, 30°, 45°, 120°, 30°x60°
    Color Temps28k, 30k, 35k, 40k, 50k, 65k
    Control0-10v Dimming
    EnvironmentIP44 Damp Location
    Warranty5-YEAR LIMITED WARRANTY

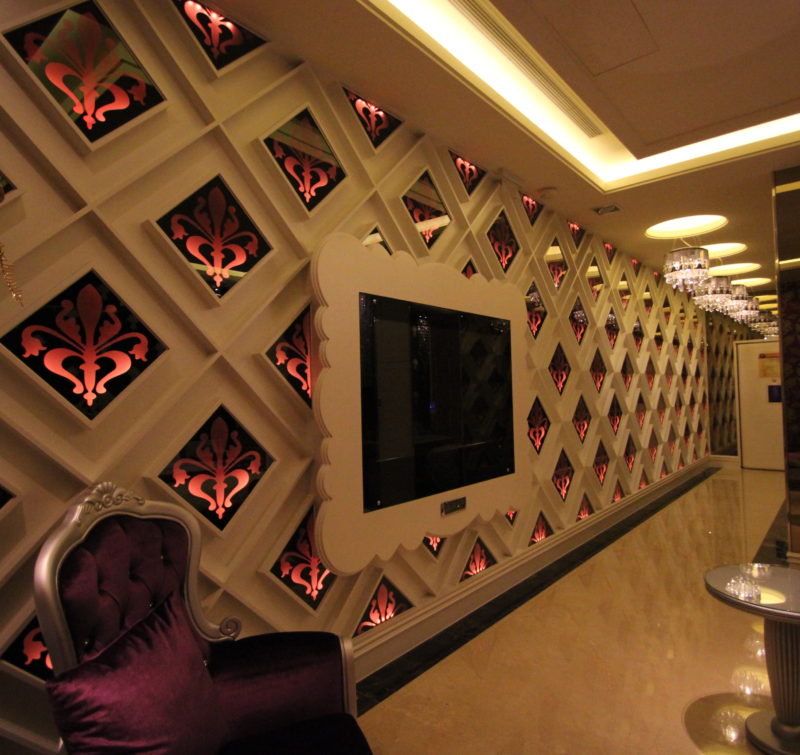

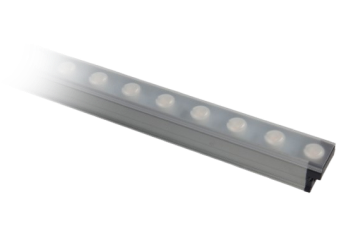

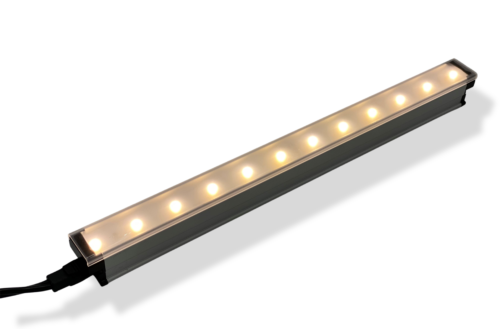

  • SB12

    Powerful indoor illumination.
    Download
    Data Sheets IES Instructions Catalog
    Applications, , ,
    Performance7 w/ft. 620 lm/ft.
    Voltage24VDC
    Lengths12", 24", 36", 48", 60", 66"
    Optics15°, 20°, 30°, 45°, 120°, 30°x60°
    Color Temps28k, 30k, 35k, 40k, 50k, 65k
    Control0-10v Dimming
    EnvironmentIP44 Damp Location
    Warranty5-YEAR LIMITED WARRANTY
